How to Build an Outlook Add-in for Email Automation
A step-by-step guide to building an Outlook add-in that automates email workflows using Office.js and Microsoft Graph.
Intro: Why automate email workflows
Email is the starting point for many operational tasks — support tickets, sales follow-ups, approvals, and document requests. Automating repeated email actions saves time and reduces human error.
This guide shows a pragmatic path: define the workflow, prototype the UI, choose when Microsoft Graph is required, and deploy a secure add-in for Microsoft 365.
Step 1 — Define the workflow
Map the exact user steps you want to automate: what they click, what data is required from the message, and whether actions are read-only or need compose-mode edits.
Decide outputs: create CRM records, generate tasks, move attachments to SharePoint, or draft reply templates — each outcome affects architecture and required permissions.
- Identify required email fields (sender, subject, body, attachments)
- Decide if the add-in needs to create or modify messages (compose vs read mode)
- List external systems to integrate (CRM, SharePoint, ticketing)
Step 2 — Architecture and when to use Microsoft Graph
Office.js runs inside Outlook and is ideal for UI and local message context. Use Microsoft Graph when you need tenant-level access, cross-mailbox operations, or advanced mail/calendar APIs.
A common pattern: keep immediate UI interactions in the task pane with Office.js, and call a secure backend that uses Microsoft Graph for actions requiring broader permissions.
- Use Office.js for task pane UI, selected message data, and lightweight actions
- Use a backend + Graph for mailbox-wide operations, large file transfers, or tenant-level automation
- Apply least-privilege scopes and admin consent only when necessary
Step 3 — Prototype the UI and user flow

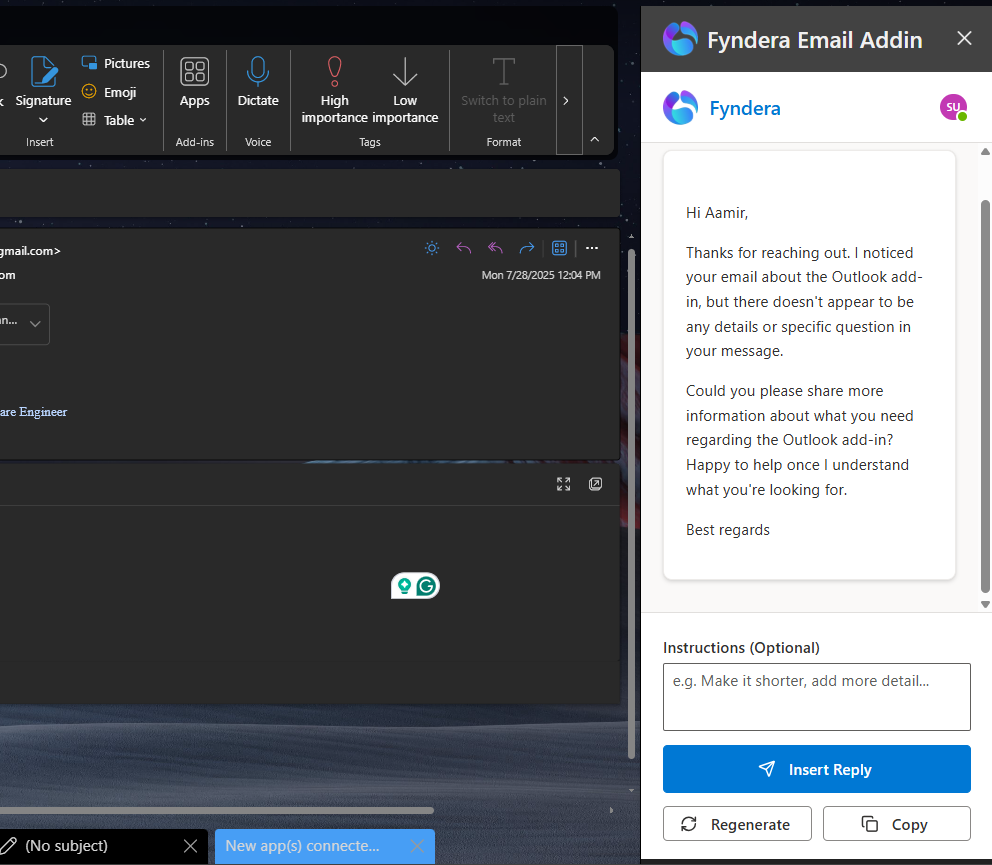

Build a minimal task pane prototype using React and Office.js to confirm UX: show selected email details, preview actions, and require explicit user confirmation for risky operations.
Validate how the add-in behaves across Outlook web and desktop early — compose/read mode differences can change available capabilities.
Step 4 — Authentication and security
If your add-in calls Microsoft Graph or external APIs, implement OAuth via Microsoft identity. Prefer a server-side token flow for sensitive scopes and avoid exposing secrets in the client.
Document the scopes you request and explain to admins why each scope is needed to reduce friction during deployment and admin consent.
- Use MSAL and a secure backend for token handling
- Request only necessary Graph scopes and prepare admin consent guidance
- Handle errors and token expiry gracefully in the UI
Step 5 — Testing, manifest, and deployment
Test your add-in in Outlook web and supported desktop clients, with pilot users and tenant settings that match production. Prepare a manifest that lists hosts, permissions, and valid domains.
Plan a pilot deployment via Microsoft 365 Admin Center before rolling out to all users. Provide simple admin instructions and a short support handoff document.
- Validate manifest URLs, icons, and permission entries
- Test read and compose modes, attachments, and cross-tenant behavior
- Provide admin notes for tenant deployment and testing steps
Next steps and CTA
Start with a focused pilot: pick one repeatable email action that saves real time and build a prototype for a small user group.
If you want help turning this guide into a working Outlook add-in, contact us for scoping, prototyping, and deployment support.
References
Common questions
- Do Outlook add-ins work with Microsoft 365?
- Yes. Outlook add-ins deploy through Microsoft 365 and run in Outlook on the web and desktop clients that support Office.js.
- When do Outlook add-ins need Microsoft Graph?
- Use Office.js for message context and UI in the task pane. Use Microsoft Graph when you need mailbox-wide operations, calendar sync, or tenant-level data beyond the open item.
